Powder coated (inside/outside) - Bright White
Nut & Bolt - Precision punched panels on 6 ' centers
UL Approved Control Panel - On/Off Switch with Motor Starter
Filter Plenum - Including filters intake/exhaust with grids
(2) 24” Dayton fans (optional in 3PH or 1PH) - Supplied by Grainger
(2) 8’ Chimney stack assemblies - Places fans and motors above booth to minimize noise
Manometer - Monitors your airflow
(2) Door limit switch - Shuts down airflow when doors open inadvertently
Tri-fold doors (w/ viewing window) - Sturdy hardware
Personnel door (w/ viewing window)
T8 Florescent bulbs
(8) Standard light fixtures
(2) Class I, Div II light fixtures
Compliance Package for permitting of booth
Detail drawings
Instruction for booth assembly to smallest detail
** 1 year warranty **
Single Phase Upgrade $750
Shown with Optional Plenum ($1919)
Ramstein Heat Unit Option: $16,699

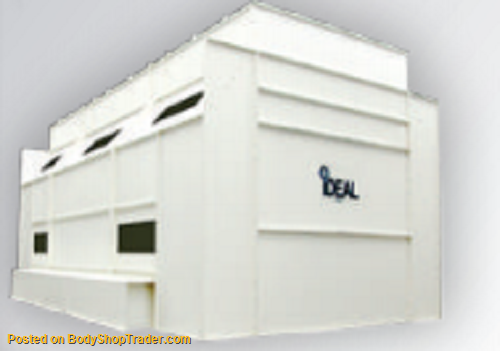

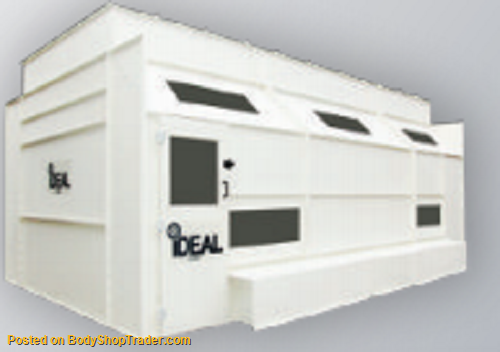

MODEL NUMBER - PSB-SDD26 (Filter Top)
INSIDE DIMENSIONS - 26’L x 14’W x 9’3”H
OUTSIDE DIMENSIONS - 26’4”L x 17’8”W x 11’3”H
FAN / MOTOR (2X) 24” Tube Axial Fan 2HP 3PH 230/460VAC 60HZ Non-spark, NEMA Rated
CFM - 14,000 @.5 Static Pressure
Lighting - 10 ea. T-8 Light Fixtures, Four Bulbs
