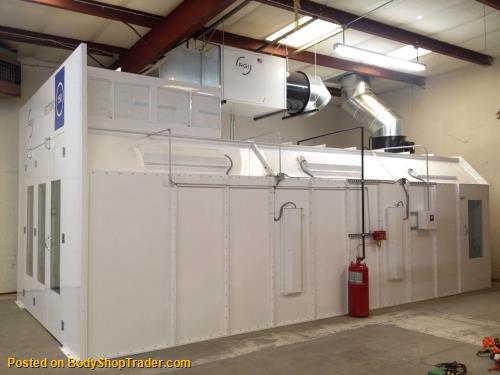

AUTO PAINT BOOTH PAINT BOOTH
INSIDE WORK AREA DIM. 14'Wx27'Lx9'H CONSTRUCTION :

Pre-punched single wall panels 18 ga. galvanized steel panels Self-support airtight construction

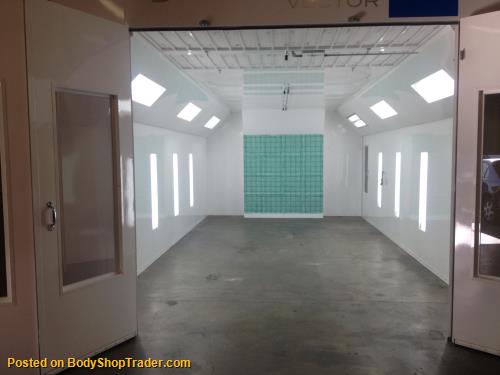

Fresh air enters the booth through the front top intake plenum and travels across the
cabin evenly into the rear centered exhaust plenum providing a safe environment and a
supreme air flow for a great paint job.
(1) Side access man door Dim. 3'x7'
(10) 4 tube fluorescent T8 light fixtures 120v. (bulbs not included)
(1) 30' Dia. Tubeaxial belt drive exhaust fan CFM's @ .250' SP=13,180
(1) 3hp 3ph motor 208-230/460v. 60 hz
(1) Mark dywer manometer kit defines air flow pressure
(16) Exhaust filters w/ (32) exhaust filter grids
(20) Intake filter pads precision punched

POCO - Powder coat ultra white inside and out of the spray booth. cover all panels doors and
frame. floor channels and ceiling panels

DUCTING KIT:
Ducting kit for spray booth exhaust system.
(2) Plain duct, (1) Service door duct, (1) Flashing for roof and (1) damper cap

CONTROLS:
Controls for spray booth: mag start for motor with on and off switch and reset. Interlock valve with door limit
switches for on and off on spray cycle
